5KVA 220V Inverter System

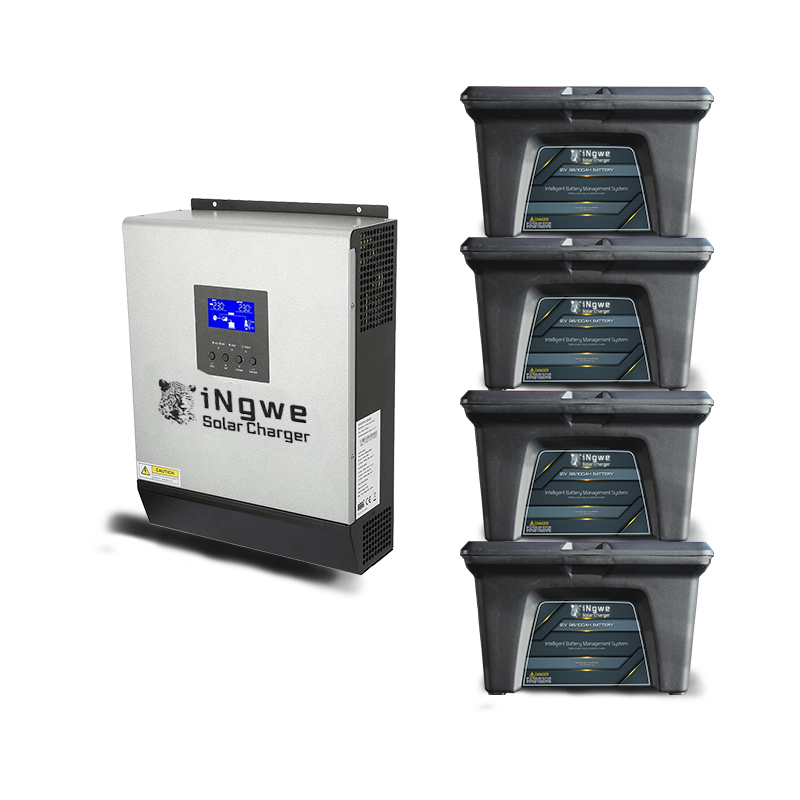

5KVA 220V Inverter System 4000W AC Package
Batteries & Inverter
Tough, reliable and affordable the Ingwe Solar inverters are ideal for battery backup and off-grid solar, home and office solutions. Transformerless design provides reliable power conversion in a compact size with high efficiency. Aluminium housing and integrated interface system, these units are light and handy making installation easy and effortless.
SPECIFICATIONS
- 5KVA 4000W Inverter
- 5000VA/4000W
- Input Voltage: 230 VAC
- Frequency: 50Hz/ 60Hz (Auto Sensing)
- Output Voltage: 230 VAC ± 5%
- Surge Power: 10000VA
- Waveform: Pure Sine Wave
- Parralel Operation: Up to 9 Units
- Battery Voltage: 48VDC
- Floating Charge Voltage: 54VDC
- Overcharge Protection: 60VDC
- Maximum Charge Current: 60A
- Solar Charge Controller Type: MPPT
- Charging Current: 80A
- Maximum PV Array Open Circuit Voltage: 145VDC
- Maximum PV Array Power: 4000W
- MPPT Range @ Operation Voltage: 60VDC ~ 115VDC
- Standby Power Consumption: 2W
- Dimensions, D x W x H (mm): 140 x 295 x 540
- Nett Weight (Kgs): 13.5
- Humidity: 5% – 95% Relative Humidity
- Operating Temperature: 0°C – 55°C
- Storage Temperature: -15°C – 60°C
